Manual liquid coating systems offer great flexibility in the handling of batches and are suitable for treating parts of considerable size and weight while maintaining high quality standards, even when dealing with components of different shapes and sizes within the same batch.

Static liquid coating lines consist of the following machines:

Cleaning booth or chamber

This is the machine where the parts undergo the cleaning phases necessary to ensure optimal adhesion of the subsequently applied paint layer. Depending on customer requirements, we can install one of the following options:

  • Cleaning booth, inside which the workpieces are cleaned with a detergent solution sprayed by an operator through a pressure washer.
  • Cleaning chamber, where the workpieces can be inserted and treated automatically in several stages, depending on the degree of cleanliness required.

Hot air circulation drying oven

Drying quality is crucial not to nullify the effect of the pre-treatment and allow for optimal paint application. After pre-treatment, therefore, the components are fed into the drying oven – a chamber where the parts are dried after pre-treatment and before coating. Drying is achieved by the combined effect of temperature and air circulation.

The ovens designed and built by Verona Impianti 2002 have high thermal outputs because they are equipped with panels with excellent insulation performance. Our drying ovens also have heat retention systems to minimise energy consumption.

The oven can be heated either by fuels such as natural gas, LPG, or diesel, or by batteries of resistors.

Liquid coating booth

The coating booth is the beating heart of the paint application process, providing high finishing quality but also a healthy work environment for operators. Verona Impianti 2002’s booths are carefully designed and equipped with specialised paint application equipment ideal for both automatic and manual liquid painting, depending on production requirements.

The booths integrated into static systems can have two main configurations: horizontal airflow or vertical airflow. This choice depends on the operation’s specific requirements and can affect the efficiency and quality of the coating process.

Hot air circulation baking oven

The baking oven is the chamber inside which the parts undergo the heating process necessary for the paint to polymerise. To guarantee optimum performance, our ovens are built with premium materials, have high thermal outputs, and are equipped with panels with excellent insulation performance. In addition, the baking ovens designed by Verona Impianti 2002 include heat retention systems conceived to minimise energy consumption.

As the baking phase is so important for the quality of finishes, our team pays particular attention to energy consumption, internal temperature uniformity, and finishing performance when designing these units.

The oven can be heated with various energy sources, including fuels such as methane gas, LPG, or diesel and batteries of electric heating elements.

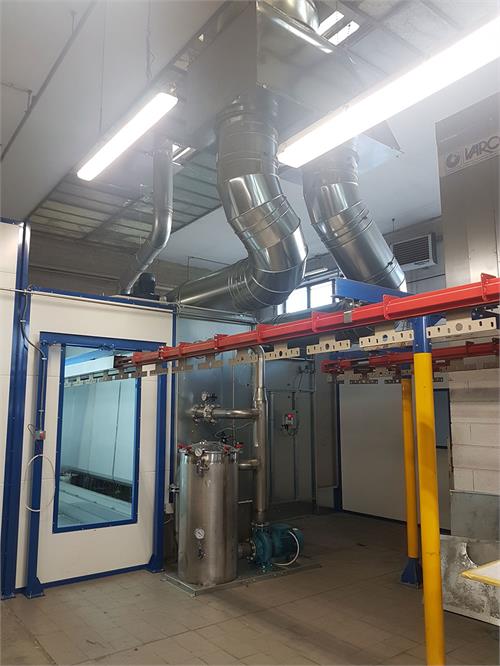

Workpiece handling systems

Our manual coating systems offer a wide range of part handling solutions, custom-designed to meet each customer’s unique production needs. We carefully consider factors such as the required output and the weight and size of the components to be coated to offer an efficient and optimised work cycle.

In particular, we can design static plants equipped with:

  • overhead monorail conveyor with manually operated trolleys;
  • trolleys with wheels on the ground;
  • overhead carriages with workpiece-carrying bars (“carriage” conveyor);
  • overhead power & free conveyor with “storage buffers”.
