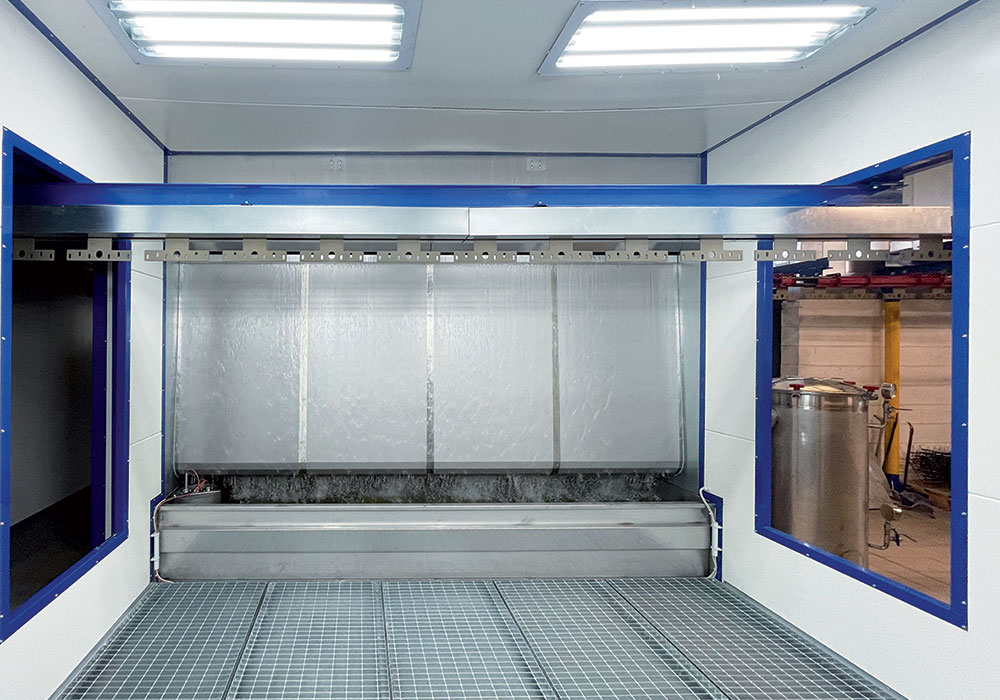

A water curtain spray booth from Verona Impianti is the ideal solution for the industrial application of liquid paint on all types of workpieces. Our water curtain spray booths can be integrated with the most advanced technology. They offer numerous advantages in terms of coating quality and functionality, aesthetic appearance, and work environment safety.
Through optimised airflow, they remove any contaminants and provide the healthiest conditions for operators by effectively retaining paint particles.
Key features of our water curtain booths
Verona Impianti 2002’s booths are designed to meet each customer’s needs, offering customised solutions for treating parts in all shapes and sizes. Thanks to our forty years of experience as a plant engineering company, we can also install them within already existing plants to upgrade or replace machinery.

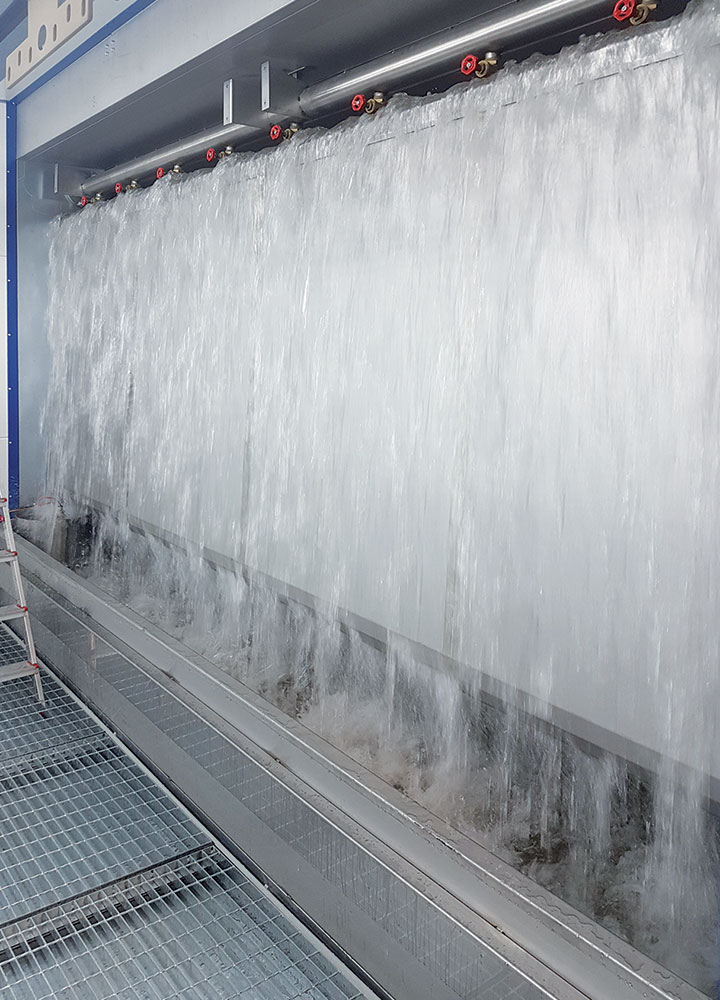

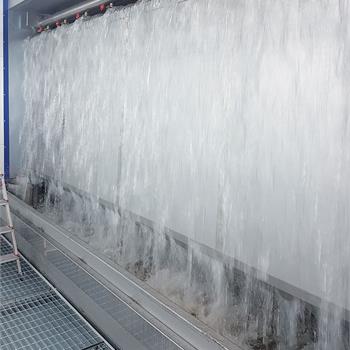

The particle retention system is based on the presence of a frontal water curtain and the performance of a backwash operation via spray nozzles in the suction unit. That prevents paint dispersion into the environment, improving process quality and reducing pollution. The water curtain booths designed by Verona Impianti consist of the following elements:
- Front water curtain: it retains paint particles, thus improving air quality in the working area;
- Backwash system: it uses spray nozzles to increase filtration effectiveness;
- Protected circulation pump: it uses a metal filter to ensure long-lasting, trouble-free operation;
- Droplet filters: they prevent the suction of water droplets by the fan to provide a clean work environment
To further improve the efficiency of coating operations and reduce operating costs, it is also possible to integrate a sludge separator that removes the paint residues by continuously filtering the water in the booth’s tank, lengthening disposal intervals and improving the system’s reliability.
